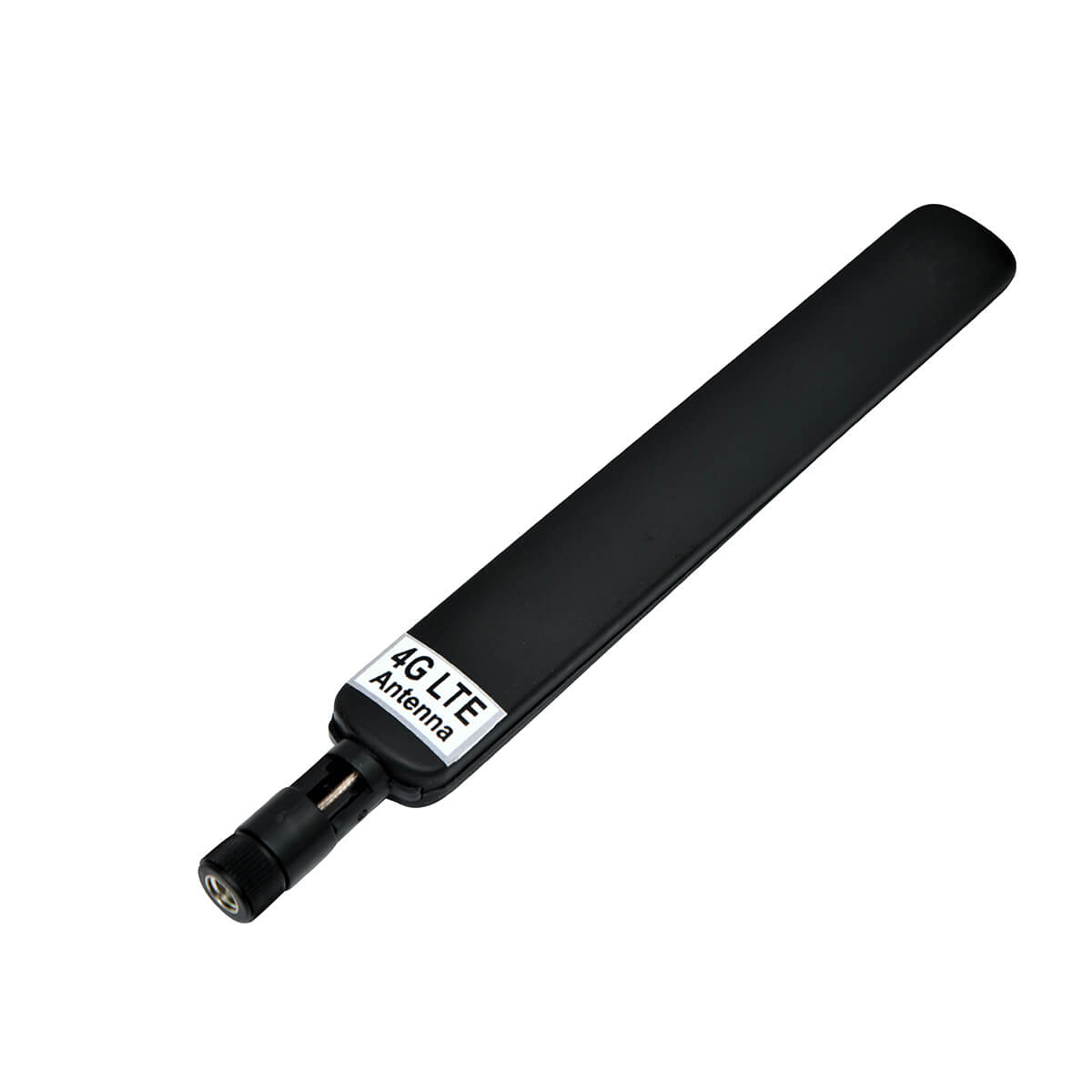

LTE External SMA Antenna

The CoreIoT LTE Antenna is primarily designed for use with 4G LTE modules and devices that require the highest possible efficiency and peak gain to deliver best in class throughput on all major cellular (2g/3g/4g) bands worldwide for access points, terminals and routers. The antenna is a ground plane independent antenna with a SMA (M) connector and swivel mechanism that allows the antenna part to be rotated. It has a quality robust IP67 UV resistant housing for use with wireless terminal.

Features

1.  Passive  Antenna
2.  Frequency Bands : 698-960, 1710-2171, 2300-2690
3.  Size of  antenna 184*24*13mm
4.  >56% Efficiency
5.  Max. Realized gain > 2.0 dBi
6.  Linear Polarization
7.  SMA Connector

Applications

1.LTE 4G
2.3G/2G/WCDMA
3.NB IoT
4.IoT Applications
5.ISM
